Fiber optic fittings

  • ADSS suspension clamp ≥100m span

ADSS suspension clamp ≥100m span

  • The Preformed Suspension Clamp is the connecting hardware of ADSS cable which hanging in transmission line pole (tower).

    It can reduce static stress at the support point, improve cable anti-vibration ability, and cushioned against the dynamic stress of Aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don’t produce extra loss in the cables.

    The Preformed Suspension Clamp is the connecting hardware of ADSS cable which hanging in transmission line pole (tower). It can reduce static stress at the support point, improve cable ant-vibration ability, and cushioned against the dynamic stress of Aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don’t produce extra loss in the cables.


  • Online orders

Short Span(50-200m) suspension clamp:

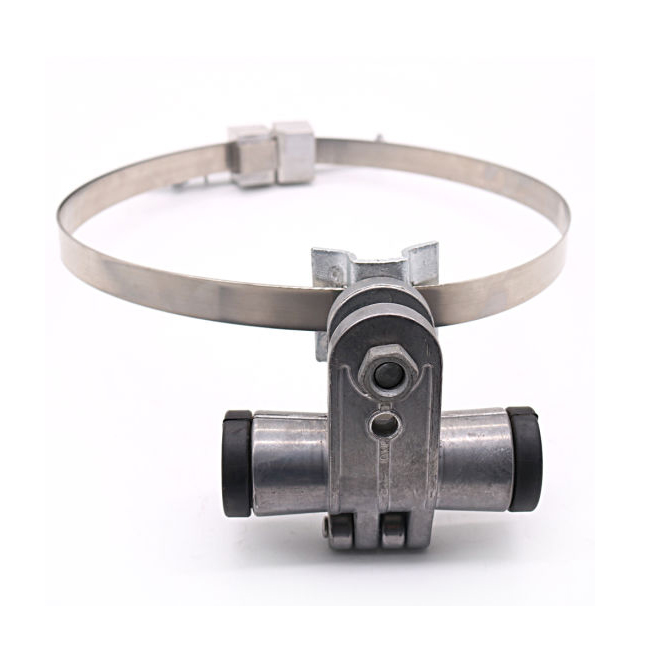

suspension clamp (1).jpgtelecom transimission line hardware suspension/tension clamp for ADSS OPGW



1- Stainless steel band(1.2m)

2- Stainless steel base: 1pcs

3- Rubber insert : synthetic rubber

4- Housing: aluminum alloy

5- Bolt, nut, washer, spring washer: 1set



1- Anchor shackle: forged steel

2- Housing: aluminum alloy

3- Rubber insert: synthetic rubber

4- Bolt, nut, cotter pin



Features:

Simple structures, easy installation, and lower cost.



Applications:

Poles/towers with span of less than 100m, and line angle of less than 15°



Technical Data:

RTS: greater than 20kN

Recommended span length: 100m

 Product Model

Cable Diameter (mm)

Armor Rods (mm)

OXF 100-10

9-10

0

OXF 100-11

10-11

0

OXF 100-12

11-12

0

OXF 100-13

12-13

0

OXF 100-14

13-14

0





 Long span ADSS/OPGW suspenion clamp



telecom transimission line hardware suspension/tension clamp for ADSS OPGWtelecom transimission line hardware suspension/tension clamp for ADSS OPGW

Single preformed armor rod

The single preformed armor rod is used to ADSS/OPGW cable on the line support and connect immediate support for support of angle less than 25.



Double preformed armor rod

The double preformed armor rod for ADSS is used to ADSS cable on the support of angle or elevation angle approximately 25-60.

The double preformed armor rod for OPGW is mainly used to hang OPGW  cable on the transmission line support and connect immediate support or elevation angle approximately 25-50.





Application:

for ADSS/OPGW on pole or tower



Related fittings:

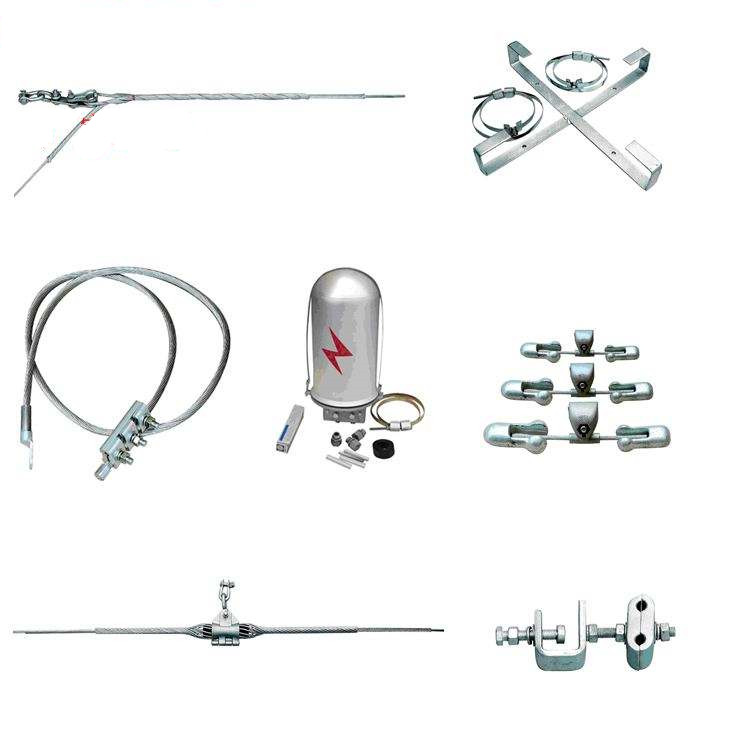

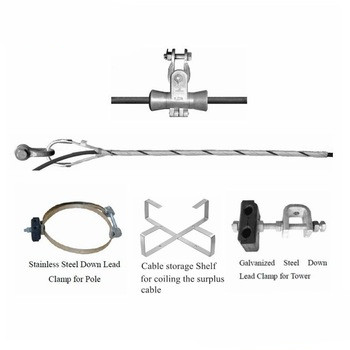

adss fitting.jpgfiber optic cable clamp.jpg
