Fiber optic fittings

  • Anchor Clamp for ADSS cable

Anchor Clamp for ADSS cable

  • Low voltage Overhead Line Fitting plastic Anchoring clamp with stainless steel rope for optical fiber cables type ADSS, Automatic conical tightening. Opening bail easy to be installed.
    All the parts secured together.
    Standard: NFC33-042.


  • Online orders

Material

Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Features

A pair of wedges grips the cable automatically within the conical body.
The installation does not require any specific tools and the operating time is drastically reduced.

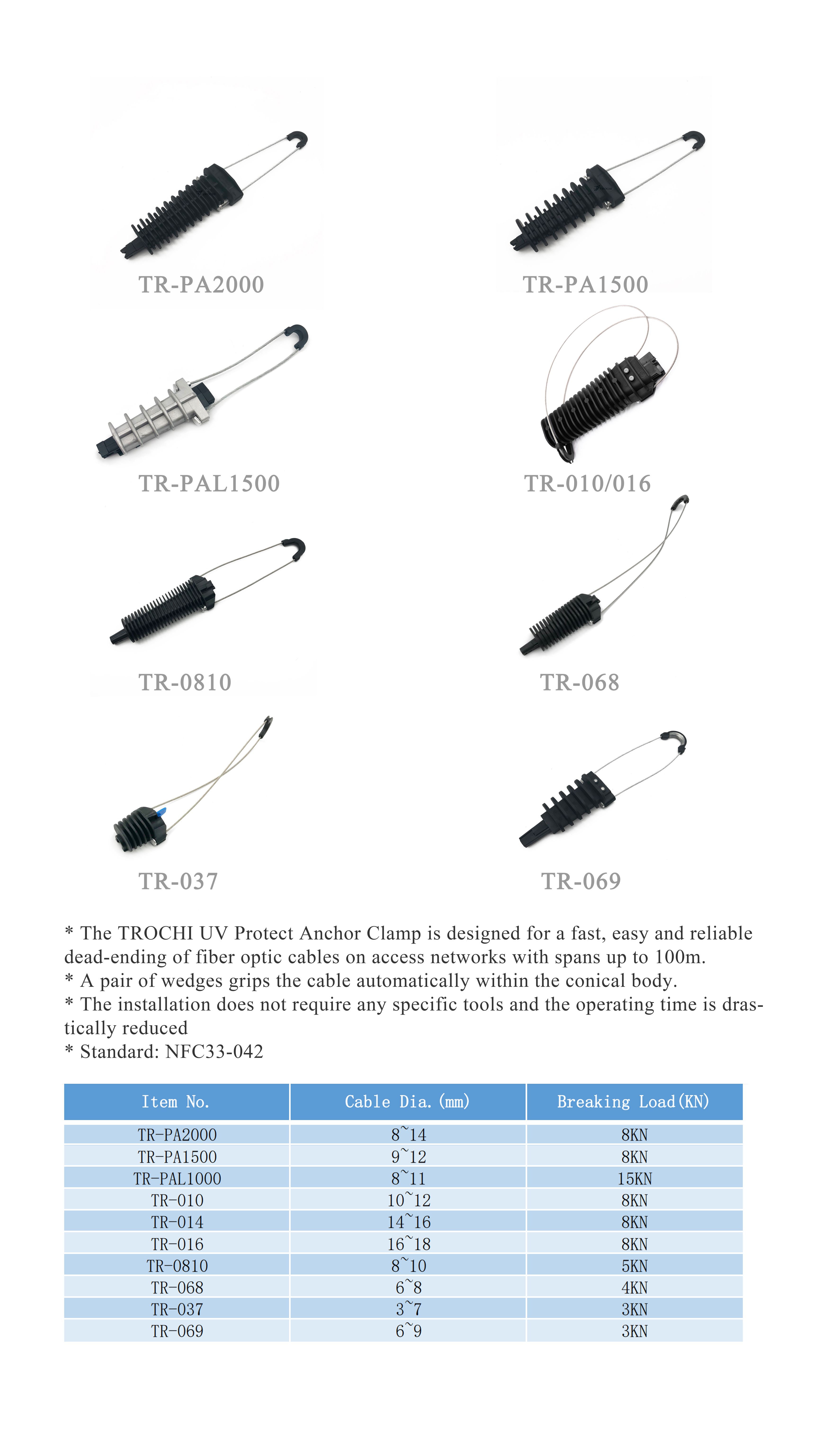

High quality PA500 PA1000 PA1500 PA2000 tension clamp anchor clamp for ADSS fiber optic cable

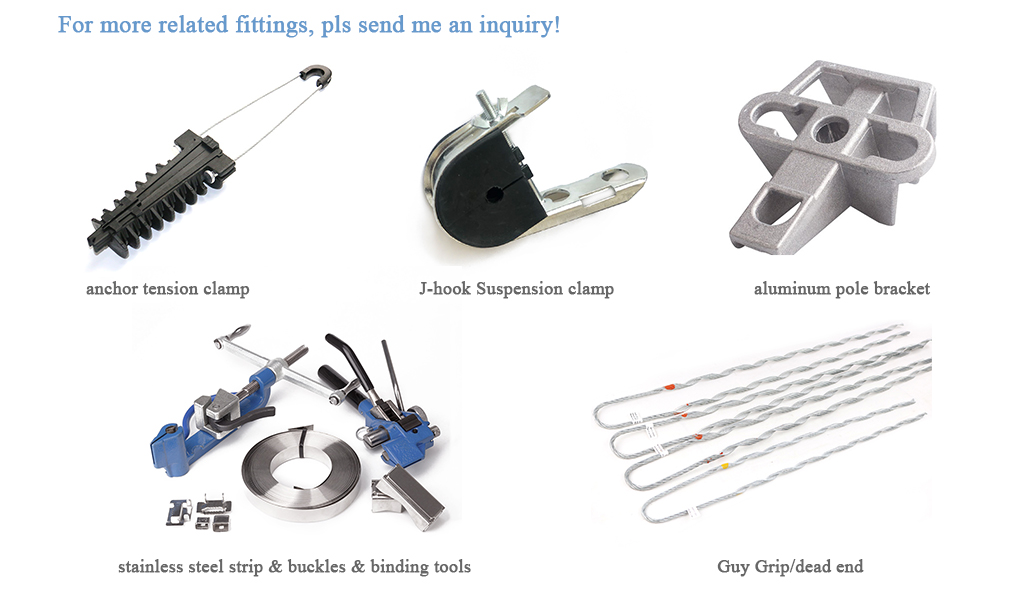

ADSS fittings.jpg
ItemTypeApplicable cable diameterBreaking LoadApplication
Tension clampPA20008-14mm 8KNfor ADSS fiber optic cable
Universal pole bracketUPB  / 10KN
Suspension clampJ-HOOK

5-8mm

8-12mm

10-15mm

 4KN/10KN
Stainless steel band & bucklesSS201

size:19*0.7mm


For more type, pls send me inquiry! or find the contacts at the bottom of this page!





Application

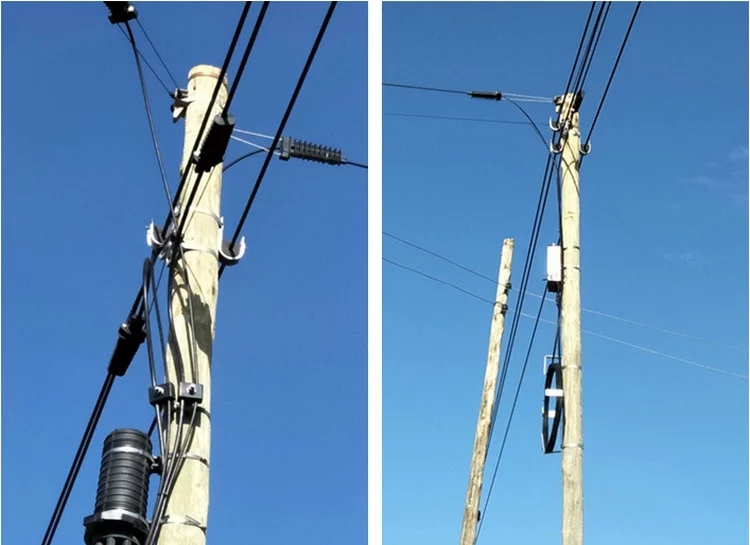

For aerial fiber optic cable fitting within 100m span.

High quality PA500 PA1000 PA1500 PA2000 tension clamp anchor clamp for ADSS fiber optic cable




Packing:
