Duct fiber optic cable non-metal GYFTY

Introduction:
A method of laying optical fiber cables. The laying of pipelines is generally in urban areas, and the environment for laying pipelines is relatively good, so there is no special requirement for the sheath of the optical cable, and no armor is required. Before laying the pipeline, the length of the laying section and the position of the connection point must be selected. Mechanical laying or manual traction can be used for laying. The traction force of a traction should not exceed the allowable tension of the optical cable. The materials used to make the pipes can be selected from concrete, asbestos cement, steel pipes, plastic pipes, etc. according to geography.
Online orders

Structure:

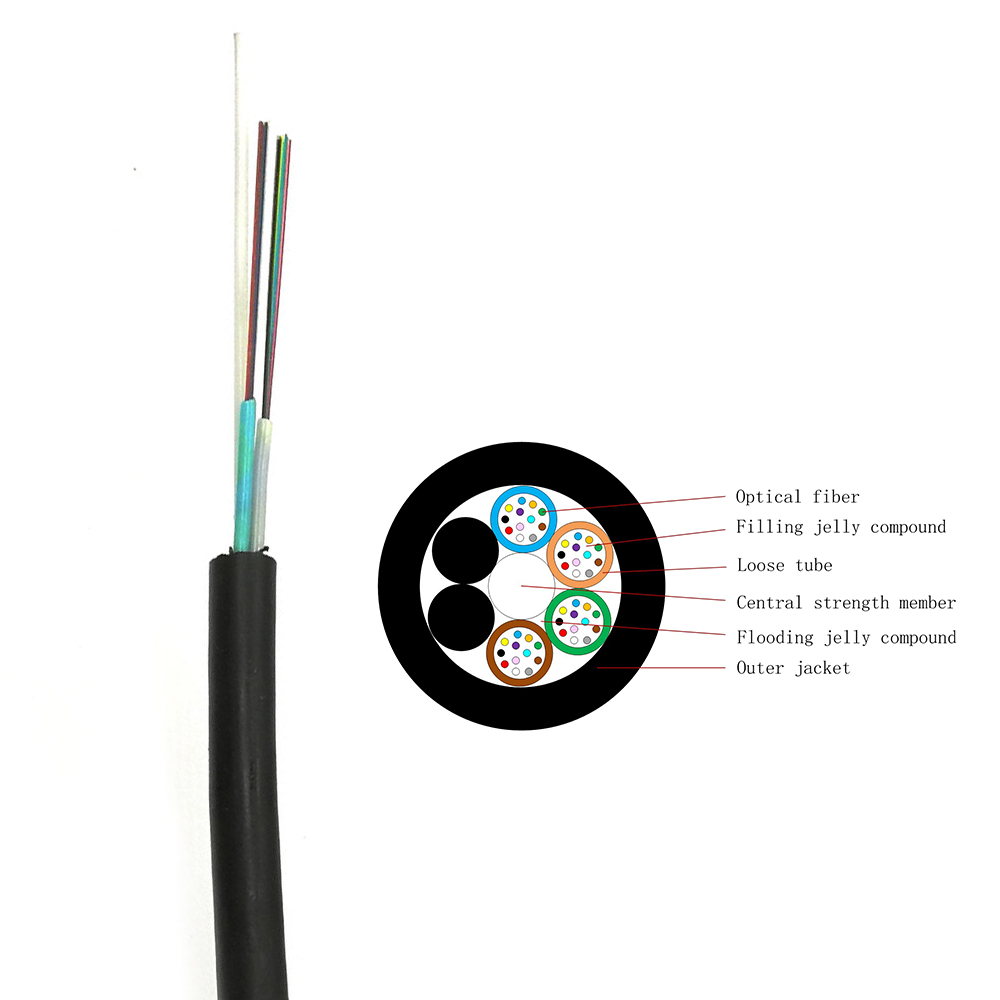

The center of the cable is a glass fiber reinforced plastic (FRP). The loose tube (and filler rope) is twisted around the central reinforcing core to form a compact and round cable core. The gaps in the cable core are filled with water blocking filler. A layer of polyethylene inner sheath is extruded outside the cable core to form a cable.

Characteristic:

1.No metal structure, excellent anti-electromagnetic, lightning performance, anti-static

2. Completely non-metallic

3.Non-metallic center reinforcement

4.Glass fiber or aramid fiber peripheral reinforcement

5.Polyethylene outer sheath

6.Excellent environmental performance, applicable temperature range is -10 ℃ ~ + 70 ℃

7.Suitable for overhead, duct,pipeline, direct buried and other laying methods

Specification:

Items		Specifications
Fiber type		G652/G652D,G655
Fiber Count		6,8,12,24,48,72,96,144 core
Colored Coating Fiber	Dimension	250µm±15µm
Colored Coating Fiber	Color	Blue, Orange, Green, Brown, Grey, Natural, Red,Black, Yellow, Purple, Pink,Aqua
Loose Tube	Dimension	2.05mm±0.05mm
	Material	PBT
	Color	Blue, Orange,Green,Brown, Grey,Natural
Central Strength Member	Diameter	2.0mm
Central Strength Member	Material	FRP
Outer Jacket	Dimension	9.0~13.5mm
	Material	PE
	Color	Black

Mechanical and Environmental Parameters

Items	Unit	Specifications
Tension(Long Term)	N	600
Tension(Short Term)	N	1500
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70
